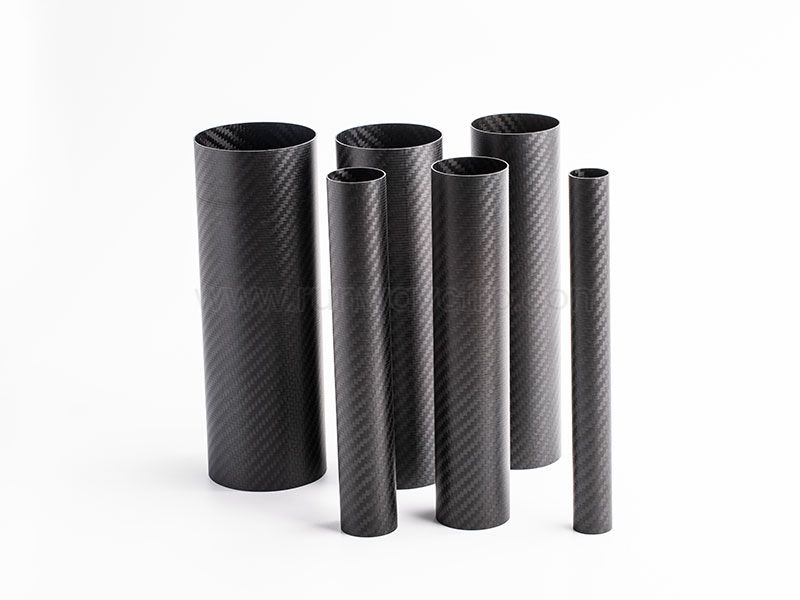

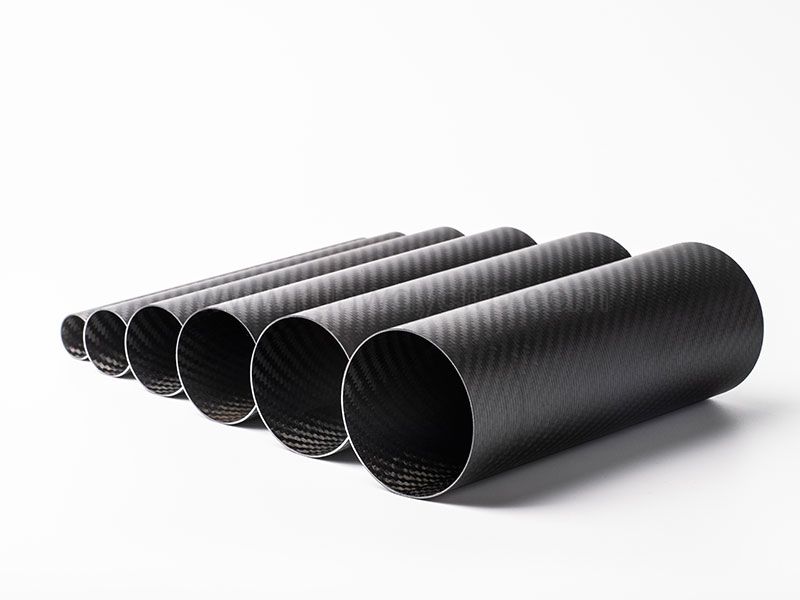

PRODUCT DESCRIPTION
Runway manufactures 3K Twill Weave Carbon Fiber Tube for applications where structural performance, low weight and a recognizable carbon fiber appearance are all important.Unlike a tube selected only for hidden structural reinforcement, a 3K twill tube is particularly suitable for parts that remain visible in the finished assembly. The diagonal woven pattern provides the classic carbon fiber appearance commonly used in UAVs, robotics, sports equipment, automotive components and high-end industrial products.
As part of Runway's broader Carbon Fiber Tube range, this product is manufactured using a roll-wrapped process and can be customized by outside diameter, inside diameter, length and surface finish.
For OEM projects, Runway can manufacture tubes according to your drawings or samples and review dimensional requirements before production.
Compared with traditional aluminum, steel, plastic and other materials, carbon materials have advantages such as light weight, corrosion resistance, high stiffness and strength, thermal and electrical conductivity, etc. carbon fiber is used for many applications due to it's unique properties.
With 3k can not only make the carbon tube more beautiful but also increase the strength of the carbon tube
Our company has advanced equipment (machining center, CNC milling machine) and many years of production experience. We can carry out production, processing service according to customer's drawings or samples.
| Product name | 3K twill weave carbon fiber tube |
| Material | 100% carbon fiber |
| Outer Diameter | Customized |
| Inner Diameter | Customized |
| Length | Customized |
| Technology | Roll-wrapped |
| Shape | Hollow round |
| Surface Finish | Matte glossy |
| Patterns | twill weave |
| Tolerance | diameter +/- 0.1mm, length +/- 1mm |
| Color | Black or customized |
| Advantage: 1. Very light and strong 2. High modulus 3. Excellent durance 4. Corrosion resistance 5. Very flexible 6. Nice appearance 7. Excellent planeness 8. Good resilience etc. | |
| Applications: 1. Sports leisure structural materials and instruments. 2. Suitable for tent / kite production. 3. Suitable for sports equipment, medical instruments and military fields. 4. Suitable for building material shaft, lifting lever, advertisement display frame, bracket lamp and fishing rod. 5. Suitable for aircraft model aircraft, unmanned aerial vehicle and motor vehicles. 6. PC equipment shaft, etching machine. | |
● Product: 3K Twill Weave Carbon Fiber Tube
● Material: 100% carbon fiber
● Structure: Hollow round tube
● Manufacturing Process: Roll-wrapped
● Weave Pattern: 3K twill weave
● Outside Diameter: Customized
● Inside Diameter: Customized
● Length: Customized
● Surface Finish: Matte or glossy
● Diameter Tolerance: ±0.1 mm
● Length Tolerance: ±1 mm
● Standard Color: Black
● Custom Color: Available according to project requirements
● Processing: Custom production according to drawings or samples
For precision assemblies, please identify all critical OD, ID and length tolerances on your engineering drawing before quotation.
The term 3K refers to carbon fiber tow containing approximately 3,000 individual carbon filaments.
"Twill" describes the way the fiber bundles are woven. A typical twill pattern creates the familiar diagonal carbon fiber appearance that is widely associated with premium composite components.
For a finished carbon fiber tube, the external 3K twill layer provides a clean woven appearance while the complete laminate structure determines the tube's overall mechanical performance.
This makes 3K twill tubing a practical choice when a component needs to be both functional and visually exposed.
Typical reasons buyers specify a 3K twill finish include:
● Classic diagonal carbon fiber appearance
● Consistent woven surface
● Premium appearance for visible components
● Lightweight composite construction
● High stiffness-to-weight performance
● Compatibility with structural OEM applications
● Matte or glossy surface options
The Runway 3K Twill Weave Carbon Fiber Tube is manufactured using a roll-wrapped process.
Roll wrapping allows carbon fiber layers to be arranged around a mandrel to create a hollow composite tube. Compared with a simple pultruded structure, roll wrapping provides greater flexibility in laminate construction and fiber orientation.
This makes the process particularly suitable for applications requiring a combination of:
● Longitudinal stiffness
● Circumferential reinforcement
● Controlled wall construction
● Consistent tube geometry
● Woven exterior appearance
● Custom OD and ID
● Application-specific laminate requirements
The outer 3K twill layer should not be considered the only factor determining tube strength. Overall performance depends on the complete laminate, fiber orientation, wall thickness, resin system and tube dimensions.
For projects involving significant bending, compression, torsion or impact loads, Runway recommends providing the working conditions together with the drawing so the tube structure can be reviewed accordingly.
Both twill and plain weave are widely used for carbon fiber surfaces, but their visual characteristics are different.
Twill weave produces a distinctive diagonal pattern. It is commonly selected for components where the carbon fiber surface remains visible and appearance is an important part of the finished product.
Typical characteristics include:
● Diagonal woven pattern
● Premium composite appearance
● Suitable for visible structural parts
● Common in automotive, UAV, robotics and sporting applications
Plain weave has a tighter checkerboard-style appearance created by alternating fiber bundles.
It is suitable where customers prefer:
● More uniform grid-like pattern
● Traditional woven composite appearance
● Compact visual texture
● Functional or decorative carbon fiber surfaces
The choice between twill and plain weave is often based on appearance and product design rather than assuming one weave is automatically stronger in every application.
Runway can discuss different carbon fiber surface options according to your project.
Surface finish can significantly change how a 3K carbon fiber tube looks in the final assembly.
Runway offers both matte and glossy options.
A matte 3K twill surface gives the tube a more restrained technical appearance.
It is suitable for:
● UAV and drone components
● Robotics
● Industrial equipment
● Sporting equipment
● Tactical-style products
● Applications where low surface reflection is preferred
A glossy finish emphasizes the depth and contrast of the woven carbon fiber pattern.
It is suitable for:
● Automotive components
● Camera equipment
● Premium sports products
● Display structures
● Consumer-facing components
● Applications where appearance is a major design consideration
When appearance must match other carbon fiber parts in an assembly, provide Runway with a reference sample or clearly specify the required weave and finish.
Many 3K carbon fiber tubes are not purchased as isolated components. They need to connect with inserts, brackets, bearings, collars, clamps or other parts.
Runway therefore supports customized tube dimensions instead of restricting customers to fixed retail sizes.
Available customization includes:
● Custom outside diameter
● Custom inside diameter
● Custom wall thickness
● Custom tube length
● Custom laminate structure
● Matte surface
● Glossy surface
● 3K twill woven appearance
● Black or specified color requirements
● Drawing-based dimensional tolerance
● Prototype and production quantities
If your tube interfaces with another component, indicate whether OD or ID is the critical dimension.
For example:
● Clamp or sleeve outside the tube: OD is usually critical.
● Insert or shaft inside the tube: ID is usually critical.
● Bonded connection: Bonding gap and surface preparation should also be considered.
● Telescoping assembly: Both OD and ID may need to be controlled carefully.
Dimensional control becomes particularly important when a carbon fiber tube must fit directly into another mechanical component.
Runway's existing specification for this product provides:
● Diameter tolerance: ±0.1 mm
● Length tolerance: ±1 mm
The combination of structural performance and woven appearance makes 3K twill tubes suitable for both engineering and appearance-sensitive applications.
Typical uses include:
● Drone frame structures
● UAV arms
● Landing gear
● Support tubes
● Payload structures
● Lightweight connecting members
Reducing structural mass is particularly valuable for airborne equipment where component weight affects overall system performance.
3K carbon fiber tubes can be used for:
● Robotic arms
● Lightweight linkages
● Moving structural members
● Automation supports
● Precision equipment structures
Low mass can help reduce inertia in moving assemblies.
Common applications include:
● RC aircraft
● Model aircraft
● Multicopters
● Model vehicle structures
● Structural reinforcement
● DIY composite projects
Carbon fiber tubes can also be considered for:
● Sporting structures
● Fishing equipment
● Lightweight supports
● Recreational equipment
● High-performance structural components
The combination of low weight and visible 3K weave makes these tubes suitable for:
● Camera support structures
● Tripods
● Photography equipment
● Display frames
● Exhibition structures
● Adjustable support systems
For applications where the tube remains visible, the 3K twill pattern can provide both a composite structural function and a finished carbon fiber appearance.
Runway can manufacture tubes according to OEM drawings for integration into larger assemblies.
Runway specializes in carbon fiber, fiberglass and other advanced composite structural components, including tubes, plates, rods, telescopic poles, profiles and custom parts.
Runway's manufacturing capabilities include:
● Roll wrapping
● Filament winding
● Pultrusion
This broader manufacturing capability allows the production method to be selected according to the product rather than applying the same process to every composite tube.
For OEM projects, Runway can work according to customer drawings or samples.
Customization can cover:
● OD
● ID
● Wall thickness
● Length
● Fiber structure
● Surface appearance
● Tolerances
● Secondary processing
In addition to carbon fiber, Runway can manufacture composite structures using:
● Fiberglass
● Aramid fiber
● Carbon/fiberglass hybrid reinforcement
● Other application-specific composite combinations
This provides more flexibility when a project needs to balance stiffness, impact resistance, weight and cost.
What is a 3K twill weave carbon fiber tube?
A 3K twill weave carbon fiber tube uses woven carbon fiber with approximately 3,000 filaments in each tow and a diagonal twill pattern on the visible surface. It combines the recognizable woven carbon appearance with a structural carbon fiber tube construction.
Is 3K twill only a cosmetic finish?
The 3K twill layer contributes to the composite laminate, but the overall strength and stiffness of the tube depend on the complete laminate structure, including fiber orientation, wall thickness, resin system and tube dimensions.
It should therefore not be assumed that the surface weave alone determines tube performance.
Is this tube roll-wrapped or pultruded?
Runway's 3K Twill Weave Carbon Fiber Tube is manufactured using a roll-wrapped process.
Can the OD and ID be customized?
Yes. Runway supports customized outside diameter and inside diameter according to project requirements.
What tolerance can Runway provide?
The existing standard specification lists a diameter tolerance of ±0.1 mm and a length tolerance of ±1 mm. Special tolerance requirements should be reviewed before production.
Can I choose matte or glossy finish?
Yes. Both matte and glossy surface finishes are available for this 3K twill carbon fiber tube.
Can Runway manufacture according to my drawing?
Yes. Runway can manufacture and process carbon fiber components according to customer drawings or samples.
Can the tubes be machined?
Machining and secondary processing can be discussed according to the finished-part drawing. If holes, slots or other features are required, their position and structural effect should be considered before production.
What applications are suitable for 3K twill carbon fiber tubes?
Typical applications include UAVs, drones, robotics, RC models, sports equipment, medical equipment, camera structures, display supports, automotive components and custom industrial assemblies.
Contact Runway to discuss your custom 3K carbon fiber tube project.
