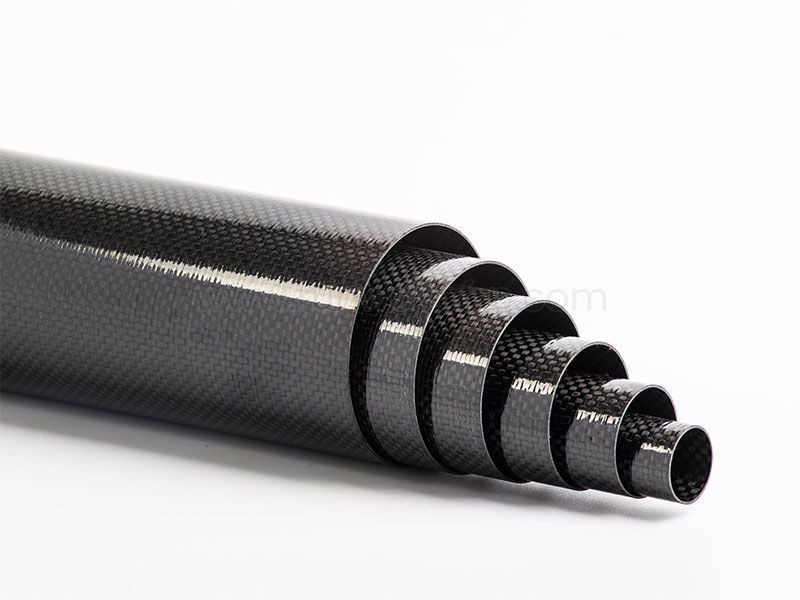

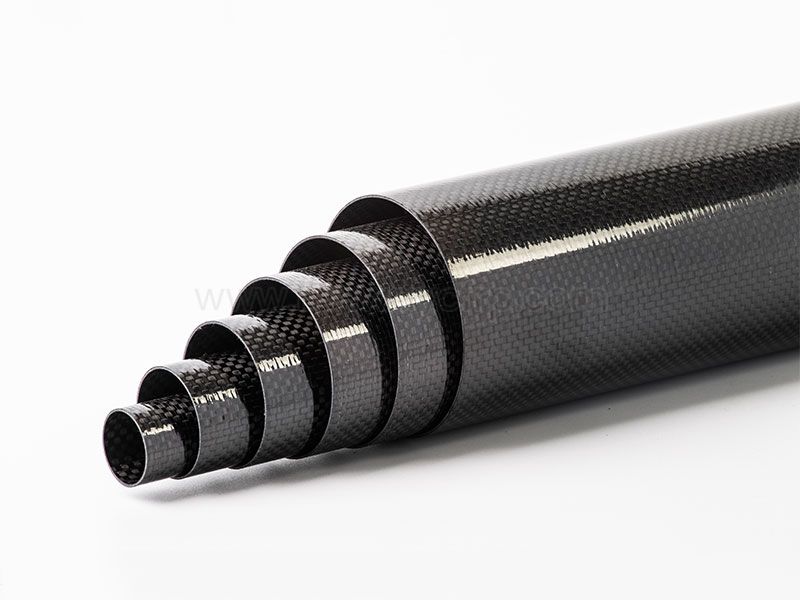

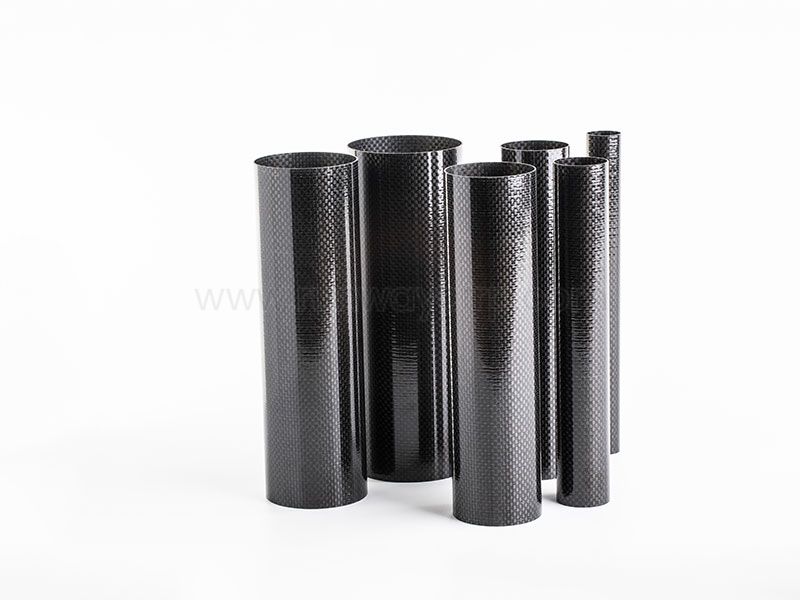

3K Glossy Carbon Fiber Tube

Runway manufactures 3K Twill Glossy Carbon Fiber Tube for applications requiring lightweight construction, high stiffness, corrosion resistance and a premium visible carbon fiber finish. The 3K twill woven surface creates the characteristic diagonal carbon pattern, while the glossy finish provides a smooth, clean appearance for exposed structural components.

As part of our complete Carbon Fiber Tube range, Runway supports customized outer diameter, inner diameter, wall thickness, length, laminate structure and secondary machining according to your drawings and application requirements.

High performance carbon fibre tubes is our range of 3K woven finish tubes which have a stunning high-gloss woven carbon fibre finish to complement their incredible strength.With the classic appearance of twill or plain carbon fibre coupled with 100% roll-wrapped prepreg carbon fibre construction, these remarkable tubes look as good as they perform.

Product Specifications

Runway can manufacture 3K glossy carbon fiber tubes in different dimensions and configurations according to customer requirements.

● Product: 3K Twill Glossy Carbon Fiber Tube
● Material: 100% Carbon Fiber
● Manufacturing Process: Roll-Wrapped
● Surface Pattern: 3K Twill Weave
● Surface Finish: Glossy
● Shape: Hollow Round Tube
● Outer Diameter: Customized
● Inner Diameter: Customized
● Wall Thickness: Customized
● Length: Customized
● Diameter Tolerance: ±0.1 mm
● Length Tolerance: ±1 mm
● Color: Black or customized
● Secondary Processing: Cutting, drilling, milling and CNC machining available

For applications involving bearings, connectors, inserts, clamps or other mating parts, we recommend providing drawings with critical dimensions and tolerance requirements before production.

3K Twill Glossy Carbon Fiber Tube Features

Runway glossy carbon fiber tubes are manufactured using a roll-wrapped composite process, combining structural carbon fiber reinforcement with a 3K twill woven outer surface. They are suitable for projects where both mechanical performance and finished appearance matter.

● 100% carbon fiber composite construction
● 3K twill woven carbon fiber surface
● Smooth glossy finish
● High strength-to-weight ratio
● High stiffness with reduced component weight
● Good corrosion and moisture resistance
● Low thermal expansion compared with many conventional materials
● Customized OD, ID, wall thickness and length
● Suitable for structural and appearance-sensitive applications

Roll-Wrapped Carbon Fiber Construction

The performance of a carbon fiber tube depends on more than the appearance of its outer weave. Runway uses a roll-wrapped manufacturing process in which carbon fiber prepreg layers are arranged around a mandrel and consolidated into a laminated tube structure.

Different fiber orientations can be selected according to the loading conditions of the final component.

● Longitudinal reinforcement helps improve axial and bending stiffness
● Angled fiber layers can improve torsional performance
● Circumferential reinforcement can support hoop strength
● The external 3K twill layer creates the visible woven finish
● Surface finishing produces the required glossy appearance

This allows the laminate structure to be adjusted for the actual application instead of relying only on a standard tube specification.

Why Choose a Glossy Carbon Fiber Tube?

A glossy carbon fiber tube is particularly useful when engineers need to reduce component weight while maintaining structural stiffness and a high-quality exterior appearance.

Compared with conventional metal tubing, carbon fiber can provide:

● Lower structural weight
● High stiffness relative to weight
● Resistance to rust and corrosion
● Low thermal expansion
● Greater flexibility in fiber orientation and laminate design
● A finished 3K woven appearance without additional decorative covering

For moving assemblies such as UAV frames, robotic equipment and camera systems, reducing tube weight can also help reduce the overall moving mass of the system.

Custom 3K Glossy Carbon Fiber Tubes

For B2B and OEM projects, Runway can manufacture tubes according to your drawings, samples and structural requirements instead of limiting buyers to fixed retail dimensions.

Customization options include:

● Custom outer diameter
● Custom inner diameter
● Custom wall thickness
● Custom tube length
● 3K twill glossy surface
● Application-specific laminate structure
● Precision cutting
● Drilling and milling
● CNC machining
● Custom surface and appearance requirements
● Prototype and batch production

If your project has specific bending, axial, torsional or dimensional requirements, provide the operating conditions together with the technical drawing so our team can evaluate a suitable manufacturing solution.

Applications of 3K Twill Glossy Carbon Fiber Tube

The combination of low weight, structural stiffness and an attractive 3K woven finish makes these tubes suitable for a wide range of commercial and industrial applications.

UAV and Drone Components

Used for frame tubes, supports, spars and lightweight structural members where reducing weight is an important design consideration.

Robotics and Automation

Suitable for robotic arms, lightweight moving structures, automation supports and machine components that require stiffness with lower moving mass.

Photography and Video Equipment

Used in tripods, camera booms, stabilizers and portable support systems where lightweight construction improves handling and portability.

Sports Equipment

Suitable for sporting goods, shafts, structural supports and other products requiring lightweight composite construction and a visible carbon fiber finish.

Industrial Equipment

Used in precision equipment, lightweight machine structures, instrument supports and custom industrial assemblies requiring corrosion resistance and dimensional stability.

Custom Carbon Fiber Tube Manufacturing by Runway

Runway provides composite manufacturing solutions for carbon fiber, fiberglass, aramid fiber and hybrid composite products. Our tube manufacturing capabilities include roll wrapping, filament winding and pultrusion, enabling different production methods to be selected according to product geometry and performance requirements.

For custom carbon fiber tube projects, Runway can provide:

● Manufacturing according to drawings or samples
● Roll-wrapped carbon fiber tube production
● Filament-wound composite tube manufacturing
● Pultruded composite profiles and tubes
● CNC machining and secondary processing
● Dimension and tolerance control
● Prototype development
● OEM production for international customers

This allows buyers to source not only a standard glossy carbon fiber tube, but also a finished composite component designed around the requirements of the final assembly.

Frequently Asked Questions

Can the OD, ID and wall thickness be customized?

Yes. Runway supports customized outer diameter, inner diameter, wall thickness and tube length. For precision assemblies, please provide drawings showing the critical dimensions and tolerances.

What is the difference between twill glossy and plain glossy carbon fiber tubes?

The main visible difference is the weave pattern. Twill weave creates a diagonal flowing pattern, while plain weave produces a more regular checker-style appearance. Structural performance depends on the complete laminate design rather than the cosmetic surface weave alone.

Is this tube made from real carbon fiber?

Yes. This product uses 100% carbon fiber composite construction rather than a metal tube covered with a decorative carbon fiber film.

Can Runway machine carbon fiber tubes?

Yes. Cutting, drilling, milling and other CNC machining services can be provided according to the final component drawing and dimensional requirements.

Can you manufacture according to our drawing or sample?

Yes. Runway supports customized composite manufacturing based on customer drawings, samples and application requirements.

What information do you need for a quotation?

Please provide OD × ID × length, wall thickness if specified, quantity, finish and machining requirements. For structural applications, information about the operating load and assembly method is also useful.
